Wednesday, October 19, 2011

Pool Cover-up Jumpsuit


I am now a dealer for Garment Designer software in the UK. Contact me if you are interested in this software.

In the meantime, here is a tutorial about how you can use this software to make a pattern for a pool cover up strapless jumpsuit.

A client brought a strapless jumpsuit to me for alteration recently. It has shirring at the top and at the waistline. When I mentioned it on the Designer School Yahoo List, someone asked how such a garment could be made using Garment Designer, so I put together this tutorial. I hope it will be useful, or at least interesting for you

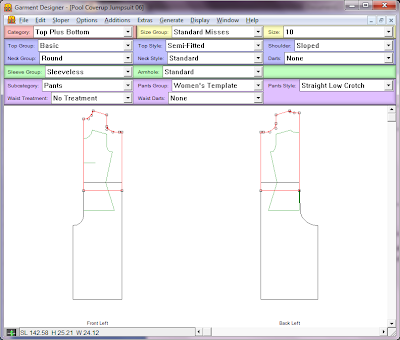

Start by selecting the following:
Category: Top Plus Bottom
Top Group: Basic
Top Style: Semi-Fitted
Sleeve Group: Sleeveless
Armhole: Standard
Darts: None
Shoulder and neckline are not important as they will be cut off.
Subcategory; Pants
Pants Group: Women’s Template
Pants Style: Straight Low Crotch
Waist Treatment: No Treatment
Darts: None


Because there will be shirring at the waistline, I moved the point where the side seam meets the waist on the pants over to the side seam. This will show the point where the shirring will be added.


To add ease I grabbed all the points making up the side seam and moved them over (you could switch dimensions on to see how much ease you are adding, or use the gridlines.)

I also added some ease by moving the crotch point down, and the inseam over


Because we are making a strapless top, the armhole depth needs to be reduced to match up with the depth on the sloper. I selected the two points forming the underarm part of the armhole and moved them upwards.


Next I added extra length to the body to allow for some blousing. I did this by selecting the whole of both the front and back tops and moving them upwards. I used the Shift key when clicking the 2nd piece to make sure I had them both selected.


To draw the line for the top of the garment, I needed to see how long the side seam is, so I turned on Dimensions. I selected the hemline of the top and used the Additions menu to add a facing, setting the width to the same as the side seam length.


I then added a 2nd facing this width plus the amount I wanted to turn down as a hem at the top, and also a global seam allowance.


The final step is to turn off the dimensions and sloper and display the final pattern.


When printing this, ignore the portion above the ‘facing’ lines. Appy shirring above the pant waistline and at the top edge after sewing the garment together using your favorite pant construction sequence.
